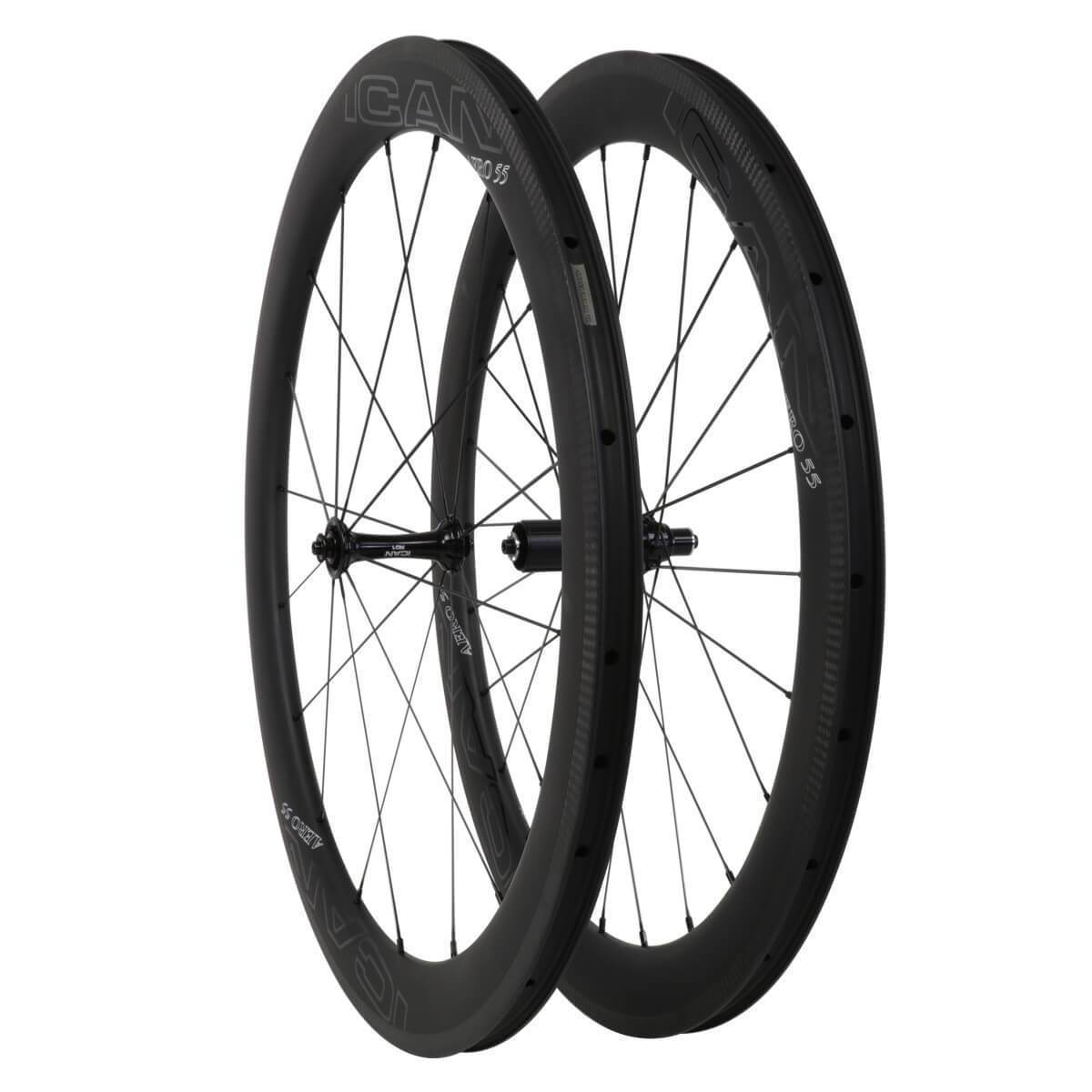

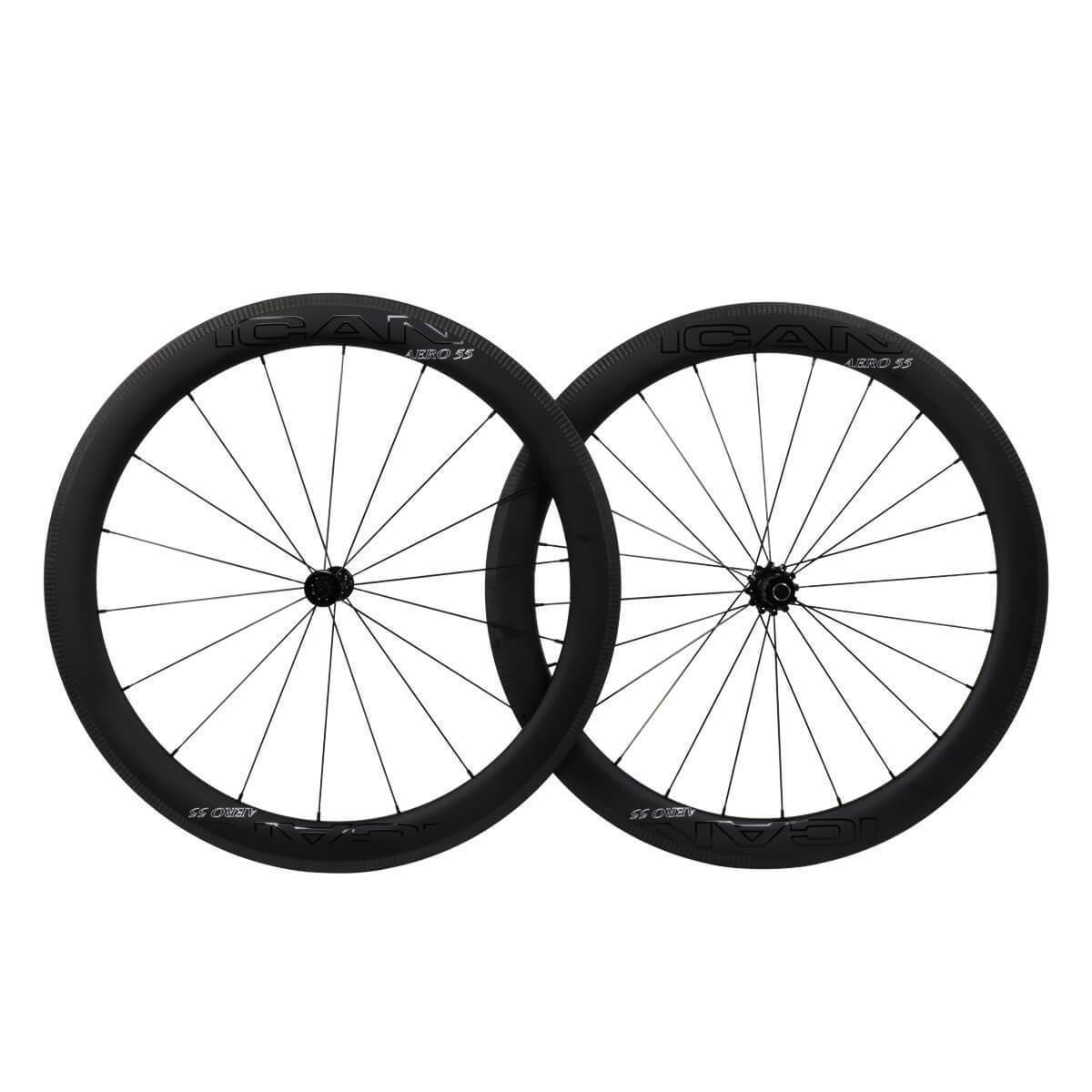

55mm aero wheels are great if you like riding fast and if you want to do the odd time trial or triathlon. They are a wheel rim you can use in most wind conditions but will still give you the aero advantage that we all crave off now. Once you’ve gone aero, you can’t go back.
Our Aero wheelset is new for 2019 and take our fantastic FL series rim and makes it lighter, around 100g per wheelset lighter. Now, who doesn’t want lighter aero wheels? We took the weight down by using a Toray T700 and T800 carbon fiber mix, instead of the sole T700 layup in our FL series, and analyzing the layup so we could lose weight but not stiffness or our aero shape.
Our Aero wheel rim then is tubeless ready, fast, stiff, and super light. Then we added a final property that we think would appeal to everyone we added affordability. We want to build the best aero wheels in the world, but we also want you to be able to afford them and pay your rent this month.
As this wheelset is super fast, we also looked at improving slowing you down. The new brake track profile on the Aero series is tolerant to 300 °. That is an improvement over the 240 ° that was the FL series standard.

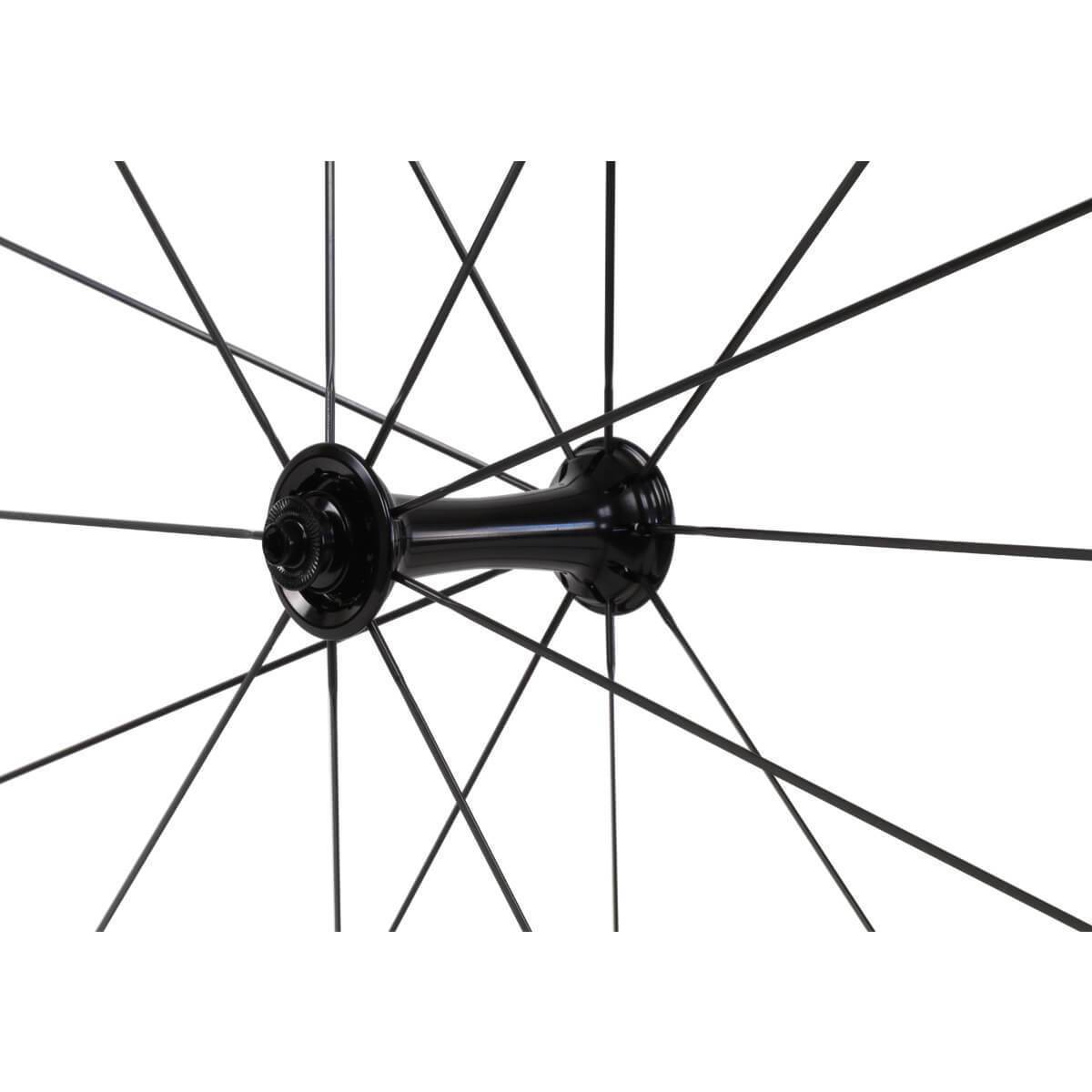

We then worked on our sealed bearing hubset. We looked at our CAD files and worked out where we could lose weight but still retain strength. We even managed to lose two spokes from the front wheel and kept the same stiffness, it now has 18 instead of 20. We succeeded, and this is why we offer this wheelset with a two-year guarantee.
You might then be wondering how we join our hubs with our Aero rim? We use the best spokes in the world. We use Sapim CX-Ray. These spokes are super light, and thanks to their butting pattern are still super stiff, perfect for our aero wheelset.
Features
Wide Rim Tech
25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.
2-Way Clincher Tubeless. Tubes or No-Tubes
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.
Sapim CX-RAY As light as a titanium spoke
The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.
UCI Approved
This wheelset has been certified and approved by the UCI (Union Cycliste Internationale), for use in UCI sanctioned road races.
Specification
Type
Carbon Racing Bike Wheelset
Material
100% Carbon Fiber Toray T700
Size
700C

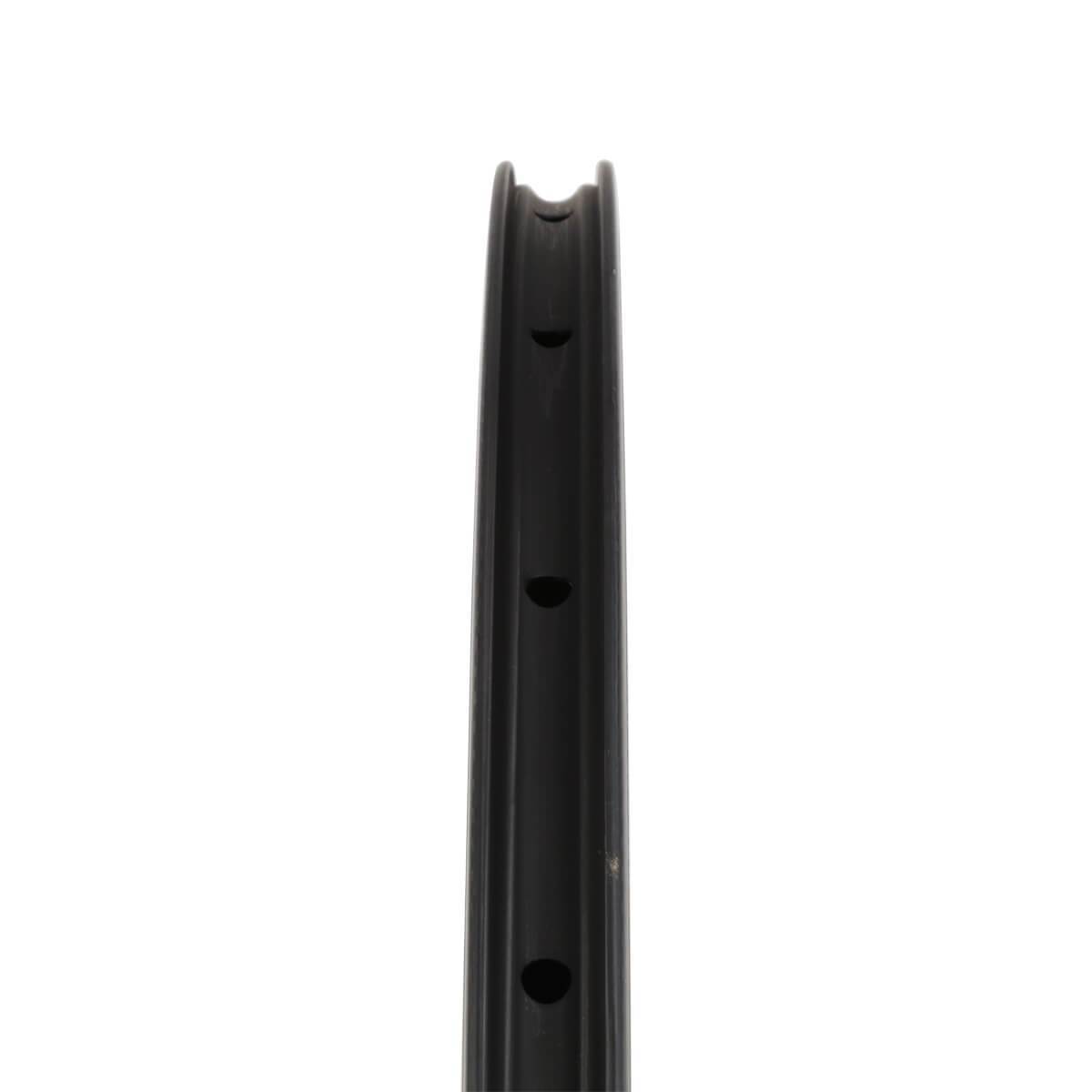

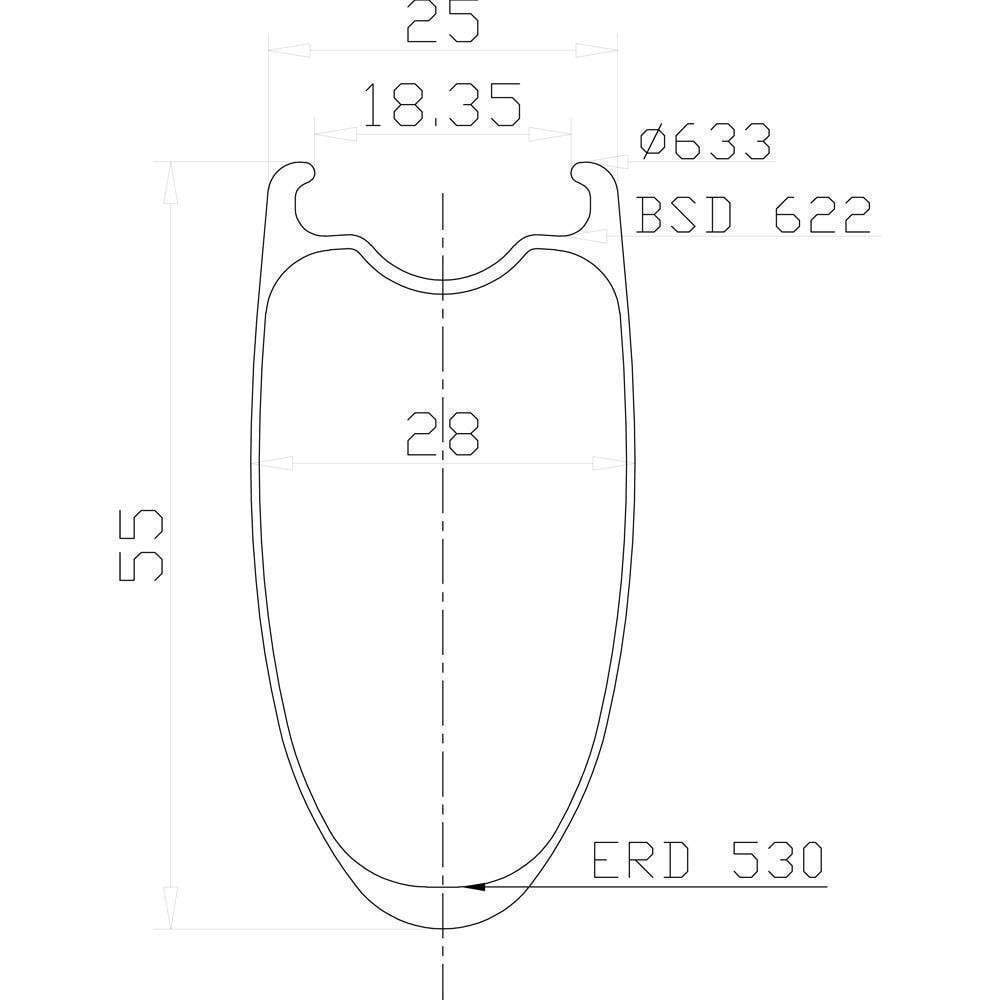

Rim
Finish: UD Matt Drills: 18/24 Holes Width: External: 25mm
Internal: 18.35mm
Depth
55mm
Profile
Clincher Tubeless Ready
Hub

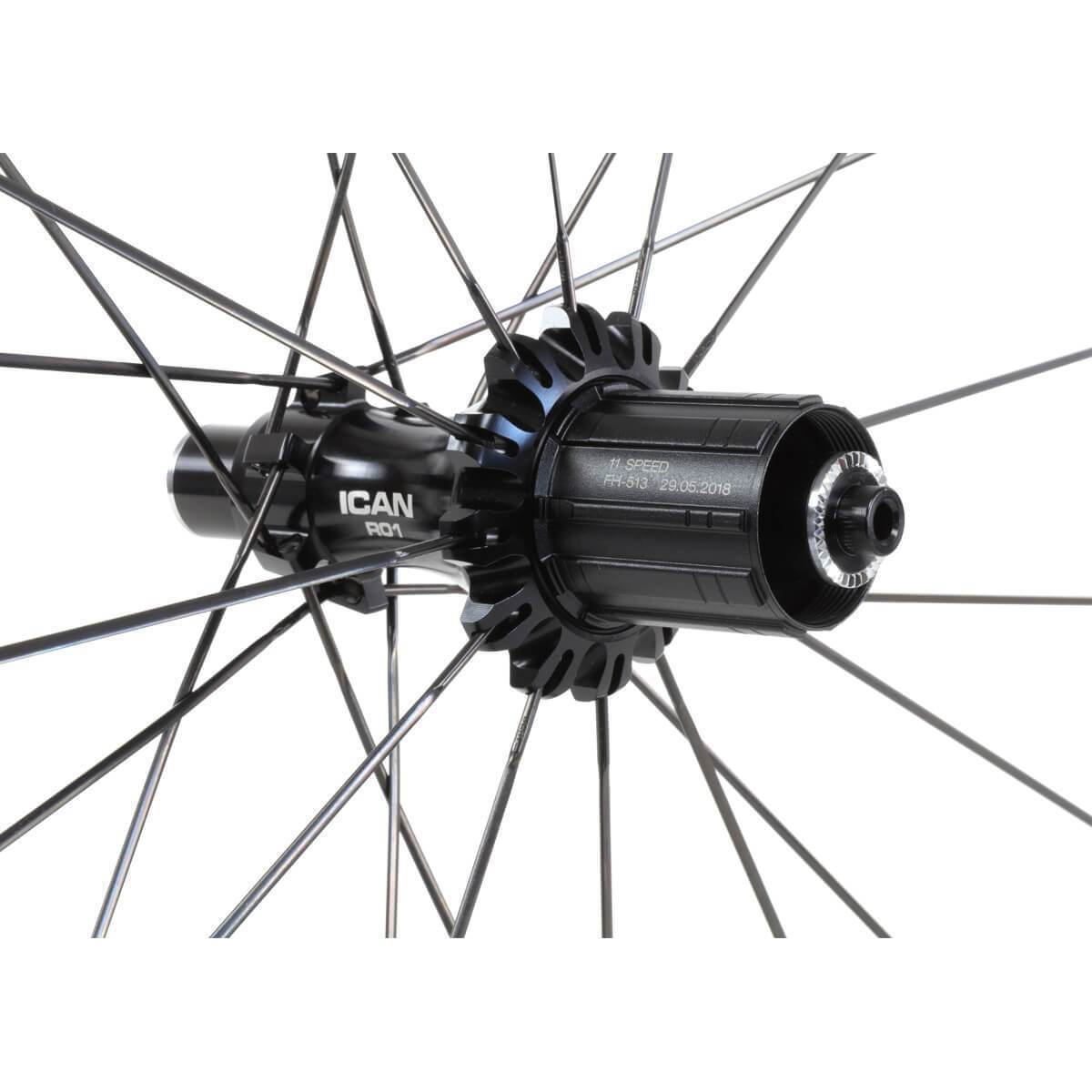

R01 Hubs
Spoke
Sapim CX-Ray Spokes
Spoke Count
Front: 18 Rear: 24
Spoke Tension
Front: 110kgf
Rear: Drive side: 136kgf
Non-drive side: 59kgf
Spoke Pattern

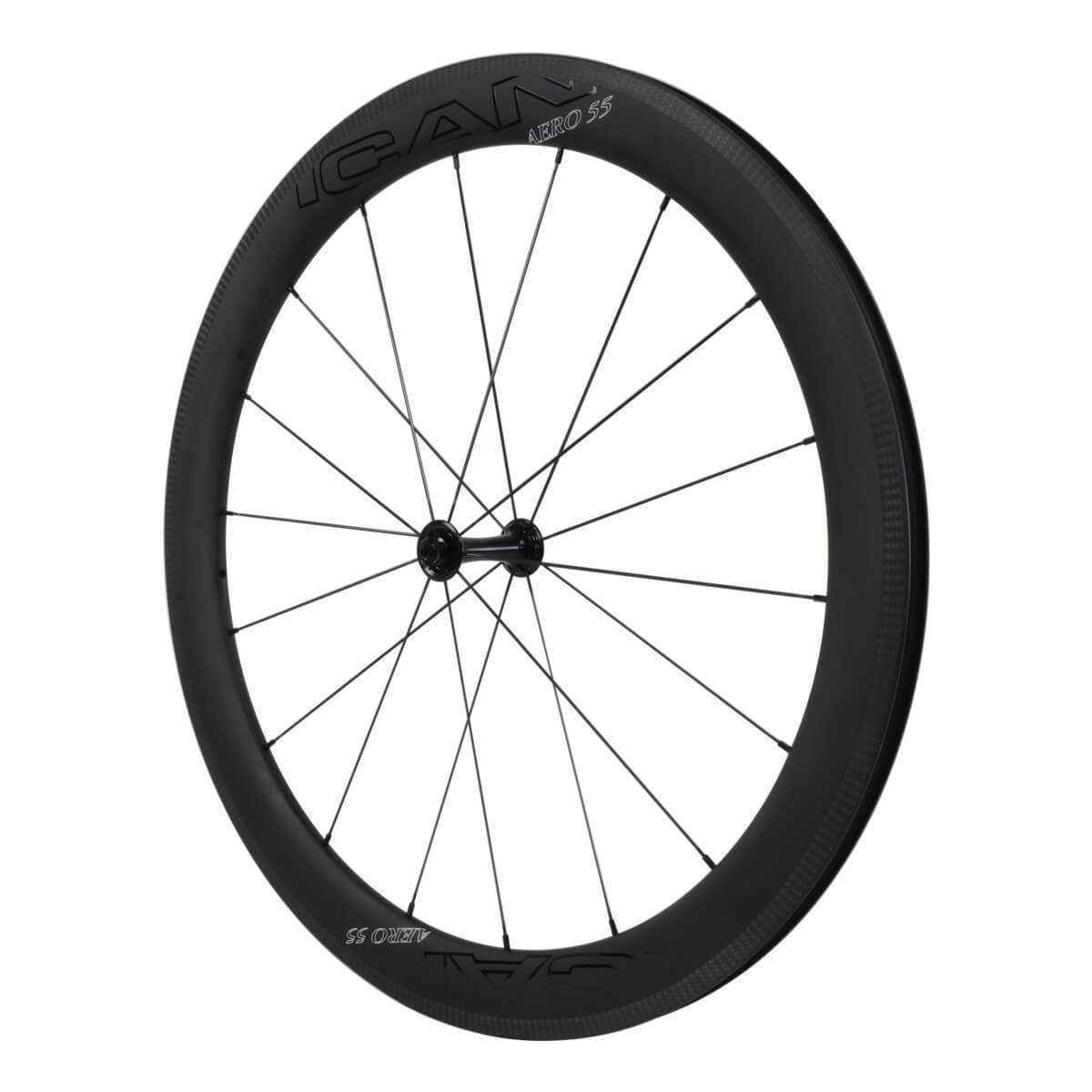

Front:Radial

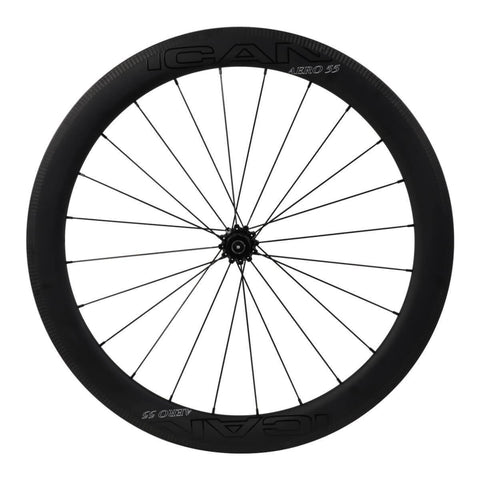

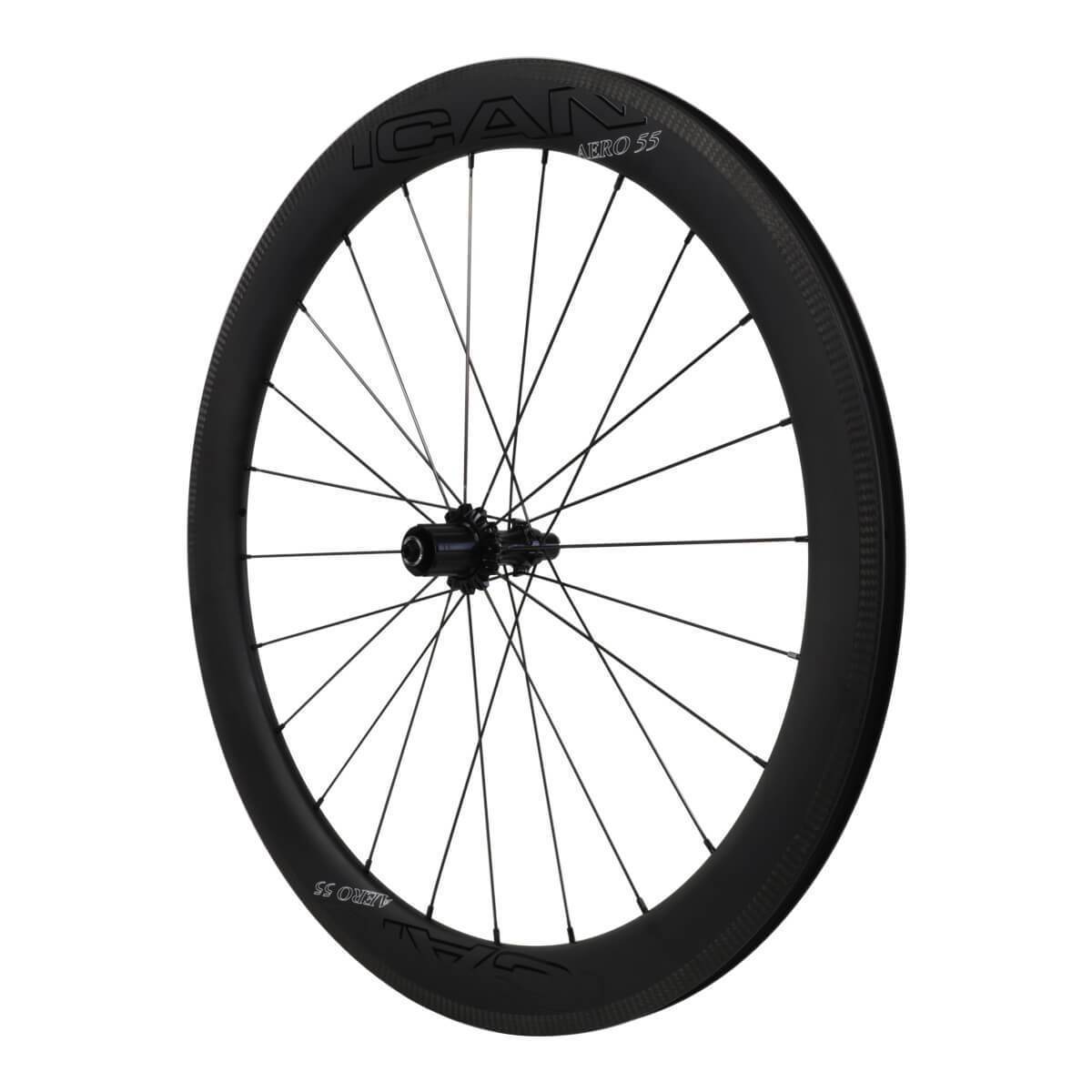

Rear: 2-crossnon drive side
Radial drive side
Nipple
Alloy Color: Black
Cassette Compatibility
Shimano 10/11speeds
Wheelset Weight
Total: 1381+-20g
Front: 604+-10g Rear: 777+-10g
Brake Surface
3K Twill
Rider Weight Limit
254lbs/115kg
Guarantee
2 years
Free
1 set of skewer
Carbon brakes pads
Packing Size
81.5cm x 17cm x 65.5cm
Recommended Tire Pressure
Below Chart is our recommended tire pressure,you can see more click here.
